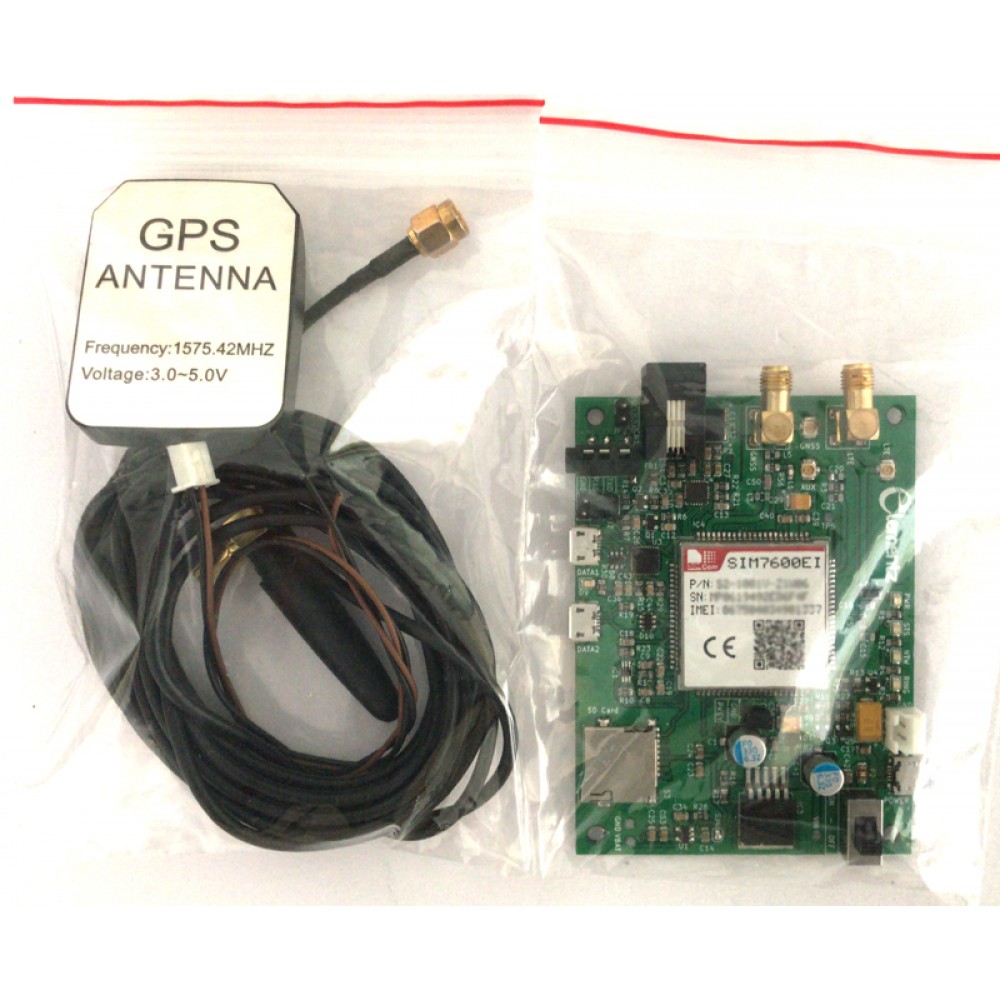

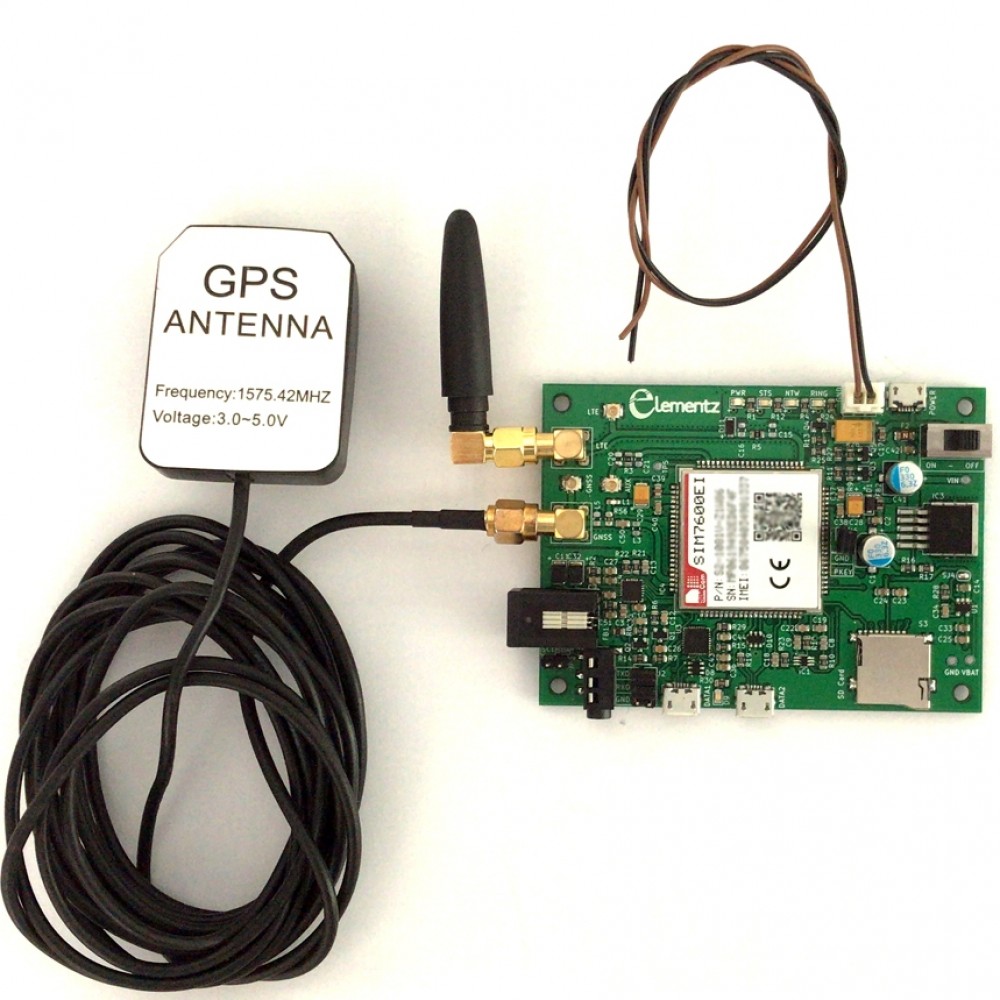

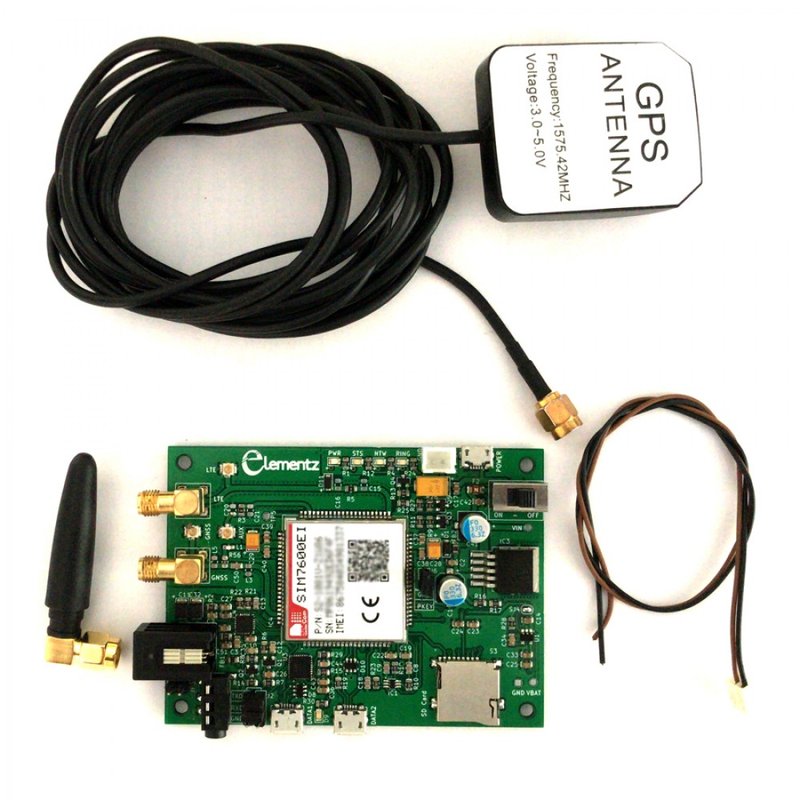

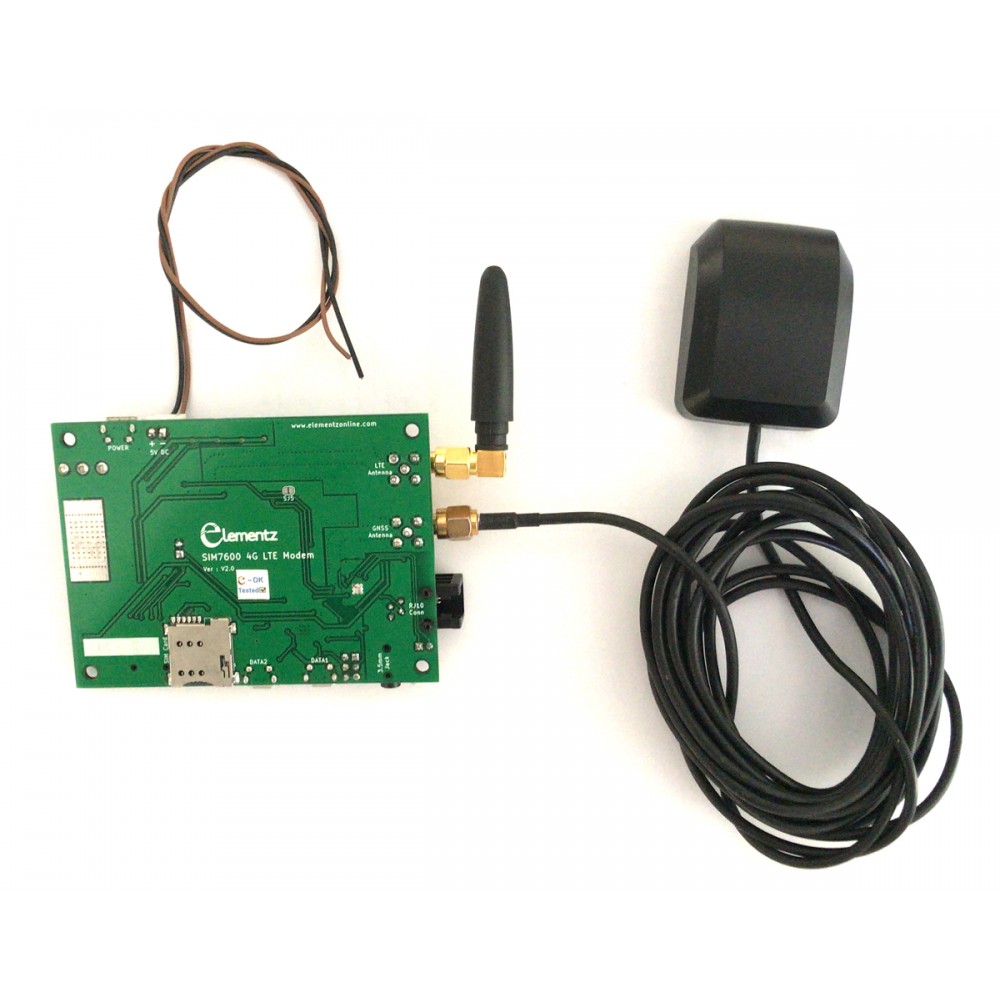

SIM7600EI 4G/3G/2G GSM MODEM MODULE WITH SMA ANTENNA (TTL AND USB)

SIM7600 variant SIM7600EI is a complete multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM module solution in LCCtype which supports LTE CAT1up to 10Mbps for downlink and 5Mbps for uplink data transfer. Designed in the compact and unified form factor, SIM7600E is compatible with SIMCom HSPA+ SIM5360 module/LTE CAT3 SIM7100 and LTE CAT4 SIM7600X-H module, which allows the customer to design their application once for different technology and benefit from great development time-saving.

Features:

• USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10
• USB Driver for Linux /Android
• RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
• MBIM to Win8
• Firmware update via USB
• TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS/MQTT
• SSL3.0/TLS1.0/TLS1.2
• DTMF (Sending and Receiving)
• Audio Playing
• Support 2G/3G/4G bands in India - SIM7600EI variant

Interfaces:

• GNSS: GPS/GLONASS/Beidou/Galileo*•ADC
• MMC/SD
• Digital Audio through PCM
• (U)SIM card (1.8V/3.0V)
• Antenna: Solder pads for Primary, Rx-diversity and GNSS antennas
• GPIO
• UART
• USB2.0 with High speed up to 480Mbps
